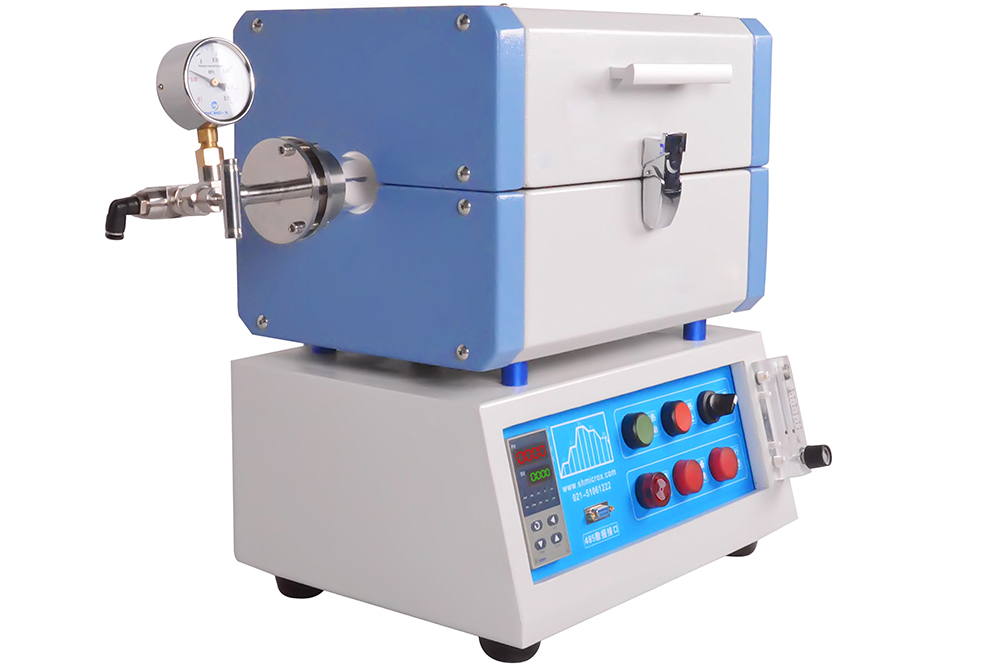

1200℃ Open Tube-type Furnace Specifications
|
||||||||||
|
|
||||||||||
|
Introduction
|
Application: High-temperature sintering, metal annealing, quality testing for colleges, institutes and industrial and mining enterprises. Roasting, zirconia disk pre-sintering for powder metallurgy industry and denture processing industry. Small-scale tests, pilot experiments and bulk production, in accordance with the size of heating zone.
|
|||||||||
|
Model
|
MXG1200-40S
|
Heating Zone Size
|
200mm
|
|||||||
|
Extreme Temperature
|
1200℃
|
Working Temperature
|
≤1100℃
|
|||||||
|
Quartz Tube
|
40*34*500mm
|
Number of Heating Zone
|
1
|
|||||||
|
Surface Temperature
|
< 60℃
|
Temperature Holding Precision
|
±1℃
|
|||||||
|
Power
|
2 KW
|
Voltage
|
Single-phase 220V
|
|||||||
|
Door
|
Up open
|
|||||||||
|
Shell Structure
|
Double-layer, fan cooling between shells, which leads to fast cooling of furnace surface.
|
|||||||||
|
Energy Efficiency
|
|
|||||||||
|
Data Display |
LED digital display
|
|||||||||
|
Bearing Positive Pressure
|
0.05MPa
|
|||||||||
|
Vacuum Degree
|
Mechanical pump 10^-2 torr; Molecular pump 10^-5 torr
|
|||||||||
|
Rechargeable Gas
|
Inert gases(nitrogen, argon), oxygen, hydrogen, etc
|
|||||||||
|
Gas Flow Control
|
Rotameter
|
|||||||||
|
Control Mode
|
Intelligent PID adjustment, fuzzy control, self-adjustment
|
|||||||||
|
Temperature Curve
|
30 programmable control, which can set 30 warming and cooling programs.
|
|||||||||
|
Temperature Measuring Element
|
K type thermocouple
|
|||||||||
|
Heating Element
|
High-quality FeCrAl with Mo heating wire;
Ring heating, temperature equidistribution, low energy consumption.
Recommended warming speed: 10℃/Min Max:20℃/Min
|
|||||||||
|
Furnace Body Temperature Holding Material
|
1500 type high-purity alumina microcrystal fiber with good temperature holding performance.
|
|||||||||
|
Customer Service
|
12-month warranty (except consumables), lifetime maintenance
|
|||||||||
|
Pack
|
Three-plywood wooden box
|
|||||||||
|
Power Cord
|
Standard 2 meters.
For longer cord, please contact in advance.
|
|||||||||
|
Crucible
|
Our company has various crucibles, please contact for more information.
|
|||||||||
|
Accessories
|
1 pair of protective glove, 1 crucible tong, 1 corundum boat；1 quartz tube, 4 furnace plugs, 1 furnace hook, No.6 hexagon(flange special), 1 set of flange, 1 set of high-pressure pipe, 8 high-temperature sealing rings, 1 product instruction manual, 1 meter instruction manual, 1 warranty certificate.
|
|||||||||
|
Standard
|
High-temperature protective gloves
|
Crucible tong
|
Crucible
|
Qartz tube
|
||||||
|
Frnace plug
|
Stainless Steel Flange
|
High-temperature Sealing Ring
|
High-pressure Pipe
|
|||||||
|
Optional
|
Movable Furnace Stand
|
Paperless Recorder
|
Computer Control Software
|
|||||||
|
Clamp Flange
|
Gas Supply System
|
Low, middle, high-vacuum System
|
||||||||
|
Constant Temperature Testing Figure
|
||||||||||
|
Customization
|
♦ This model is suitable for small experiments.
♦ If the sample is big, the customer can order bigger caliber and longer heating zone. Please contact for more information.
|
|||||||||
